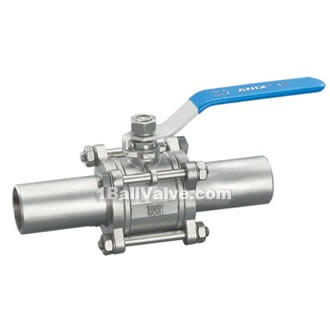

Three-plate Lengthened Butt Welded Ball Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
Three-plate lengthened butt welded ball valves
connecting form: butt welding.
nominal diameter: 1/4”～4”.
applicable medium: Water, oil, steam, nitric acid, acetic acid, etc
suitable temperature: -40～+150 degree.
seat: PTFE. working temperature: 1000 WOG.
hoisting force N: 200～300.
main material: 304 and 316.
design and manufacture according to: ISO, API, GB, BS, etc.
Structure
Q11F three-plate ball valve structural diagram
