Natural Gas Pipeline Ball Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
Natural gas pipeline ball valves
Natural gas ball valve adopts shaped PTFE packing, it is applied to most of the high and medium pressure gas transmission occasions, the handle operating torque is smooth, O-ring is used to prevent external impurities entering into the interior, and maintains a long-term sealing performance of the valve. The valve that is greater than DN150 uses worm gear drive.
Main design parameters
design and manufacture：GB/T12237-89
flange connection：JB/T79-94、GB9113-2000
face to face dimensions：GB12221-89
nominal diameter：DN15~DN150mm
nominal pressure：PN1.6、2.5、4.0MP。
The external and connection dimensions

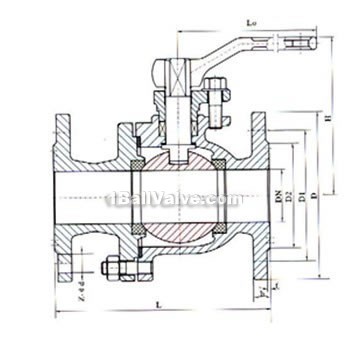

Natural gas pipeline ball valve constructral diagram
Main performance parameter
| nominal pressure | shell test | sealing test | applicable medium | suitable temperature |
| 1.6 | 2.4 | 1.76 | liquefied gas,natural gas,etc | -40~+80℃ |
| 2.5 | 3.75 | 2.75 | ||
| 4.0 | 6.0 | 4.4 |
The materials of main parts
| body,bonnet | stem, ball | sealing face | packing |
| WCB/ stainless steel | stainless steel | stainless steel and PTFE | PTFE |
Main external dimensions
| nominal diameter DN(mm) | the main external and connection dimensions of Q41F-25 (mm) | weight (kg) | ||||||||
| L | D | D1 | D2 | Z-фd | H | b | f | Do | ||
| 15 | 130 | 95 | 65 | 45 | 4-14 | 103 | 16 | 2 | 100 | 3 |
| 20 | 140 | 105 | 75 | 55 | 4-14 | 112 | 16 | 2 | 160 | 4 |
| 25 | 150 | 115 | 85 | 65 | 4-14 | 123 | 16 | 2 | 160 | 5 |
| 32 | 165 | 135 | 100 | 78 | 4-18 | 150 | 18 | 3 | 250 | 8 |
| 40 | 180 | 145 | 110 | 85 | 4-18 | 156 | 18 | 3 | 250 | 11 |
| 50 | 200 | 160 | 125 | 100 | 4-18 | 172 | 20 | 3 | 350 | 14 |
| 65 | 220 | 180 | 145 | 120 | 8-18 | 197 | 22 | 3 | 350 | 20 |
| 80 | 250 | 195 | 160 | 135 | 8-18 | 222 | 22 | 3 | 450 | 28 |
| 100 | 320 | 230 | 190 | 160 | 8-23 | 253 | 24 | 4 | 450 | 36 |
| 125 | 400 | 270 | 220 | 188 | 8-25 | 286 | 28 | 4 | 600 | 62 |
| 150 | 400 | 300 | 250 | 218 | 8-25 | 275 | 30 | 4 | 800 | 80 |
